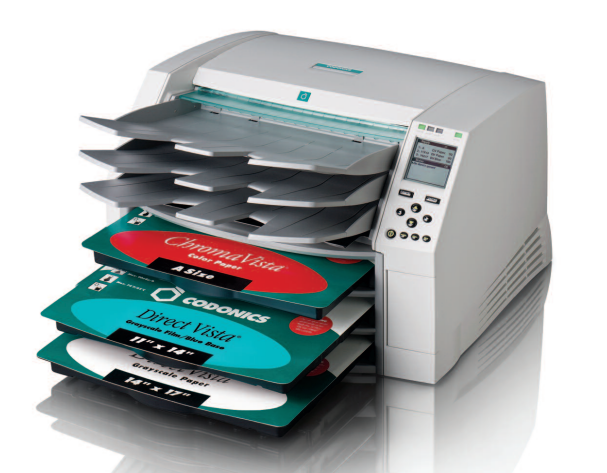

Horizon Printer

Horizon Ci-rad combines diagnostic film, color paper and grayscale paper printing to provide the world’s most versatile medical imager, including both 14” x17” and 11”x 14” media sizes for value and convenience in the CR/DR environment. Horizon’s multiple media options help to immediately cut your costs, build referring physician loyalty and attract new business.
Featuring color paper to show off your latest imaging techniques, low-cost, room light viewable grayscale paper and a compact, counter-top design, Horizon obsoletes film-only imagers. High speed image processing, networking and spooling are all standard.



Specifications

Print Technology: Dye-diffusion and direct thermal (dry, daylight safe operation)
Spatial Resolution: 320 DPI (12.6 pixels/mm)
Throughput: Up to 100 films per hour
Time To Operate: 5 minutes (ready to print from “off”)
Grayscale Contrast Resolution: 12 bits (4096)
Color Resolution: 16.7 million colors
256 levels each of cyan, magenta, and yellow
Media Inputs: Three supply cassettes, 50 -100 sheets each, one color ribbon
Media Outputs: Three receive trays, 50- sheet capacity each

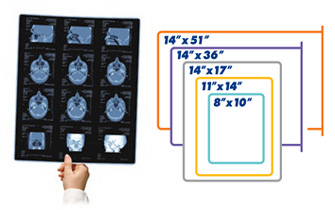

Media Sizes: 8” x 10”, 11” x 14”, 14” x 17” (blue and clear) DirectVista® Film
A, A4, 11” x 14”, 14” x 17” DirectVista Grayscale Paper
A, A4 ChromaVista® Color Paper
Image Formats: Standard: DICOM  (Optional: PostScript™ compatibility)
Image Quality: Automatic calibration using built-in densitometer

Overview
The Horizon SF combines small format diagnostic film, color paper and grayscale paper
printing to provide the world’s most versatile medical imager. Horizon’s multiple media options
help to immediately cut your costs, build referring physician loyalty and attract new business.
Featuring color paper to show off your latest imaging techniques, low-cost, room light viewable
grayscale paper and a compact, counter-top design, Horizon obsoletes film-only imagers.
High speed image processing, networking and spooling are all standard.

Download Quote?
Fill in the form below

Product: Codonics Horizon SF

Overview
Horizon Ci combines diagnostic film, color paper and grayscale paper printing to provide
the world’s most versatile medical imager. Horizon’s multiple media options help to
immediately cut your costs, build referring physician loyalty and attract new business.
Featuring color paper to show off your latest imaging techniques, room light viewable
grayscale paper to cut your costs and a compact, counter-top design, Horizon obsoletes
film-only imagers. High speed image processing, networking and spooling are all standard.

Download Quote?
Fill in the form below


Product: Codonics Horizon Ci

Overview
The Horizon G2 is an intelligent, desktop dry imager that produces diagnostic quality
medical films plus grayscale paper prints if you choose the optional paper feature.
The imager is compatible with many industry standard protocols including DICOM
and Windows network printing. Horizon also features direct modality connection,
with up to 24 simultaneous DICOM connections. High speed image processing,
networking and spooling are standard.

Download Quote?
Fill in the form below

Request Quote?
Fill in the form below.


Product: Codonics Horizon G2

Overview
The Horizon XL combines diagnostic film, color paper and grayscale paper
printing to provide the world’s most versatile medical imager. Horizon XL features
exclusive 36” and 51” dry long film ideal for long bone and scoliosis studies.
A total CR/DR print solution, Horizon XL will reduce your costs, save you space,
and completely eliminate your wet film processing needs. High speed image
processing, networking and spooling are all standard.

Download Quote?
Fill in the form below

Product: Codonics Horizon XL
